Innovative, Modular Design Cooling System

Our sectional cooling system allows very large radiators to be built using smaller modules that are fitted into steel frames.The cores can be produced in Copper Brass or Aluminum technology and the steel frames are available in variety of finishes dependent upon end user requests, these may include Galvanizing, C5 Marine paint or any other specialized finish.

Key Benefits & Features:

  • Highly Durable – Reduction in strain, through innovative floating core design and rubber grommet which allows free thermal expansion /contraction

  • Easy Handling – Compact design simplifies storage and shipment across the globe

  • Extended Life – Core protection available for corrosive environments

  • In Situ core removal/replacement – Radiator assembly can remain on the engine, no lifting equipment needed

  • Reduced Engine Downtime – Core sections are quick and easy to remove/replace, minutes rather than hours/days

  • Cleaning – Sections can be removed and cleaned, extending life and performance

  • Cost Effective – Single core can be replaced

Back to Back Engine Mounted

Suitable for Jacket Water and Low Temperature Aftercooled coolant circuits or Jacket Water and Charge Air cooling circuits

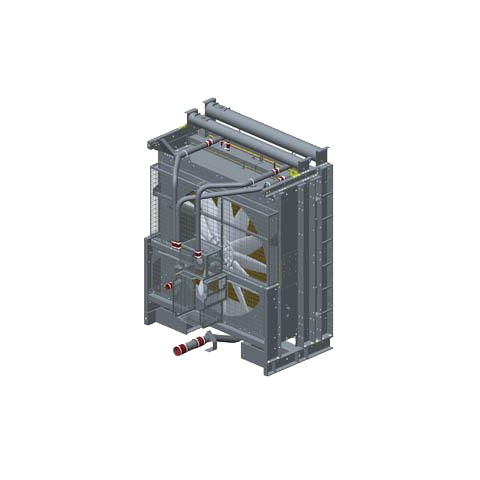

Belt Drive

Driven directly from the engine. Suitable for Jacket Water and Low Temperature Aftercooled coolant circuits or Jacket Water and Charge Air cooling circuits

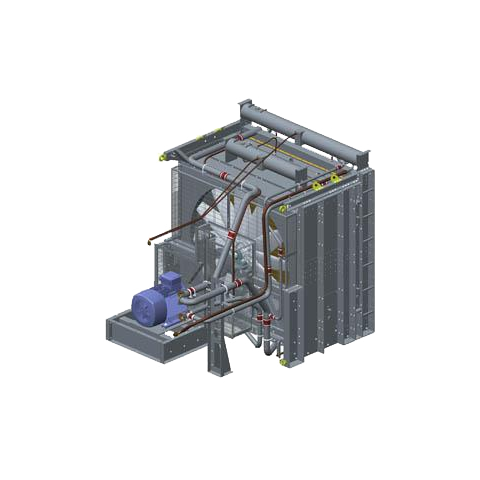

Belt Drive Remote

Driven directly from an electrical motor. Suitable for Jacket Water and Low Temperature Aftercooled coolant circuits or Jacket Water and Charge Air cooling circuits

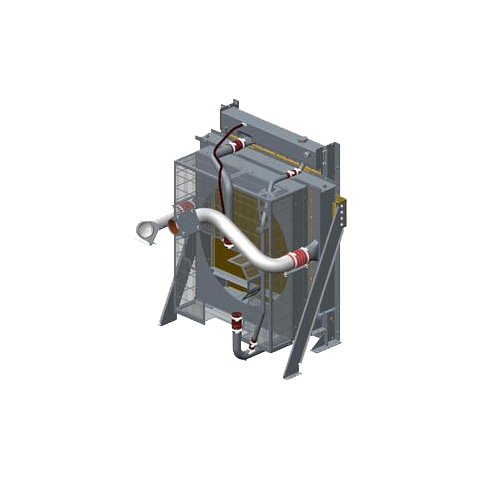

Cross Flow Engine Mounted

Suitable for Jacket Water and Low Temperature Aftercooled coolant circuits or Jacket Water and Charge Air cooling circuits when the engine architecture suits horizontal mounting

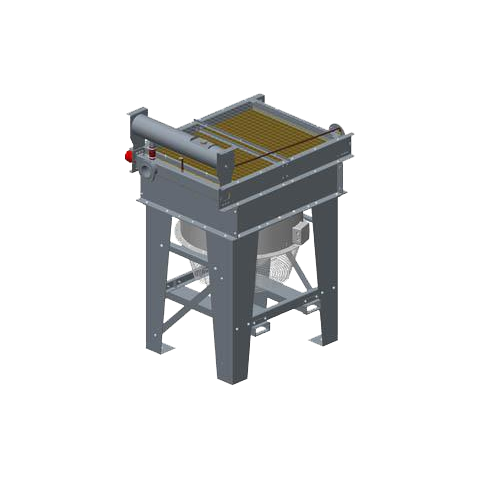

Horizontal Remote

Belt driven horizontal radiator, driven directly from an electrical motor. Suitable for Jacket Water and Low Temperature Aftercooled coolant circuits or Jacket Water and Charge Air cooling circuits. Starter packs available for low energy consumption

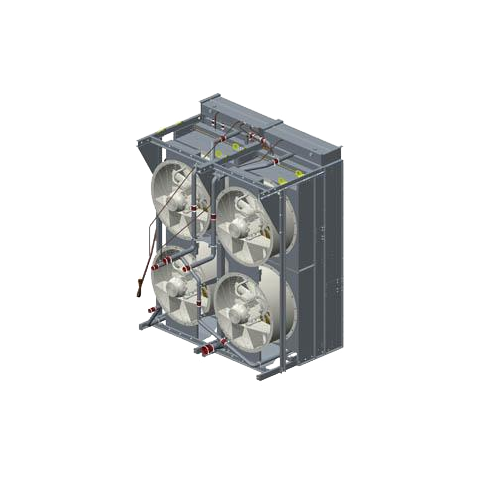

Multiple Fan & Motor

Suitable for Jacket Water and Low Temperature Aftercooled coolant circuits or Jacket Water and Charge Air cooling circuits. Starter packs available for low energy consumption

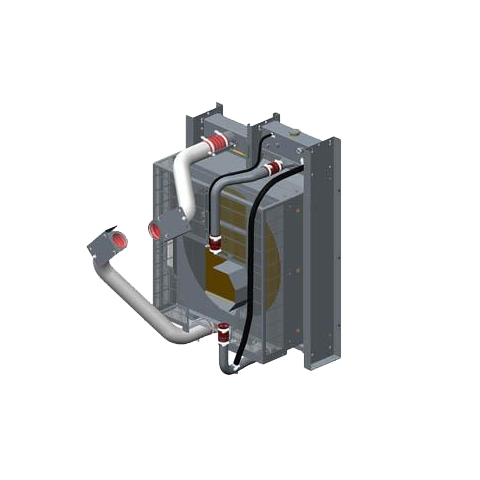

Side-by-Side Engine Mounted

Suitable for Jacket Water and Low Temperature Aftercooled coolant circuits or Jacket Water and Charge Air cooling circuits

Vertical Remote

Suitable for Jacket Water and Low Temperature Aftercooled coolant circuits or Jacket Water and Charge Air cooling circuits. Starter packs available for low energy consumption

Related Products

Mechanical Bond Radiators
Mechanical Bond Radiators

FLAT-ROUND® mechanical-bond cooling system that provides customers with a durable, long life solution

Air-to-Water Charge Air Cooler
Charge Air Coolers

Mechanical-Bond cooling systems for intermediate air to water or direct air to air cooling

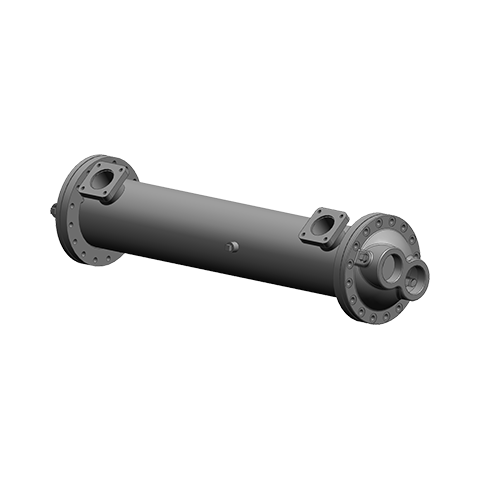

Lube Oil Cooler
