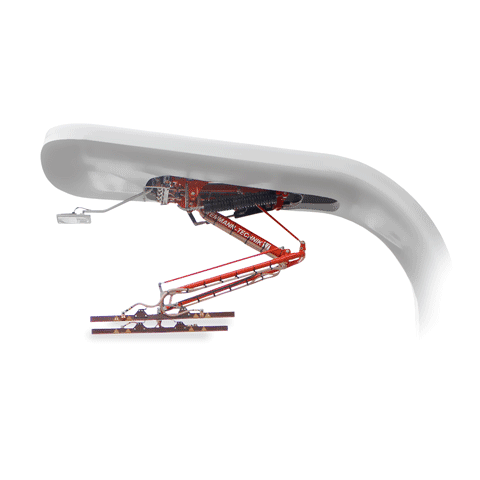

E-Bus Top-Down Pantograph

Fast, safe, and rapid charging

First to meet OppCharge standards, the fully automatic ChargingPANTO system is designed for fast charging of e-bus fleets and reduced infrastructure life cycle costs.

  • Automatic operation eliminates depot personnel resources
  • Open standard interoperability
  • Independent rails ensure positive contact during charging
  • Built in winter heating system

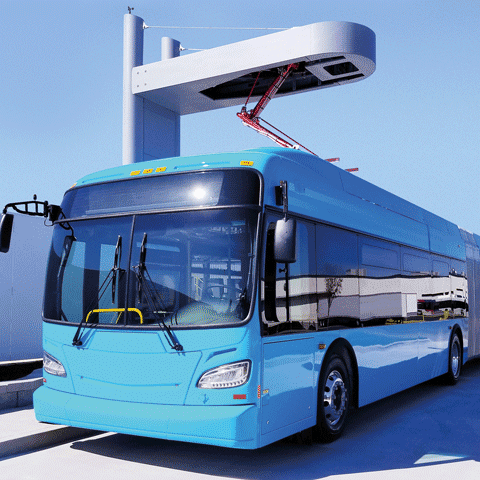

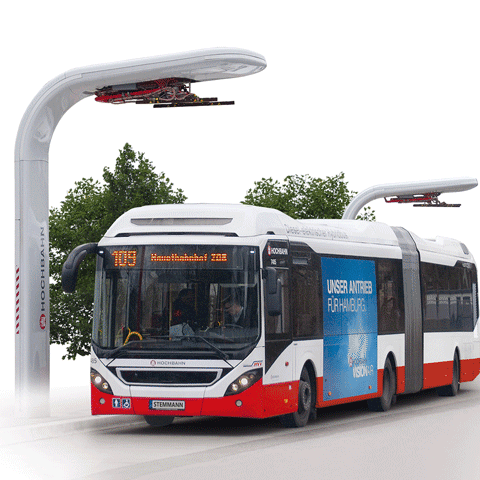

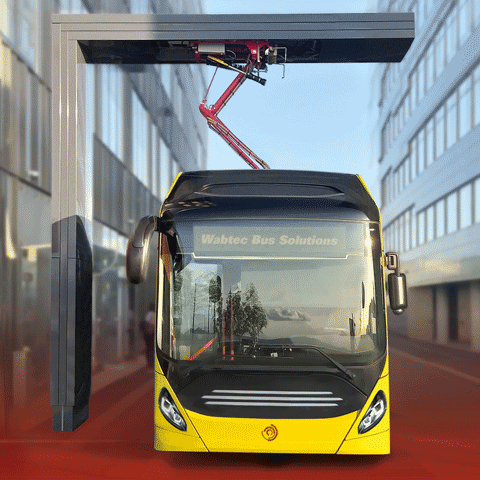

ChargingPANTO for opportunity charging

  • Fully-automated top-down OppCharge solution
  • Fast connecting
  • Charging during bus stop
  • High operational reliability
  • Fast amortization of investments
  • Low noise emissions allow overnight services
  • Open standard of the interface fits any bus type
Technical Specifications



SpecificationChargingPANTO
Nominal Voltage1500 VDC
Nominal Current860 A or 600 A
Lowering Time6 seconds
Raising Time5 seconds
WeightApproximately 419 lbs / 190 kg
Operation Temperature-40 °F to + 167 °F / -40 °C to +75 °C
ApplicationOutdoor / Indoor
