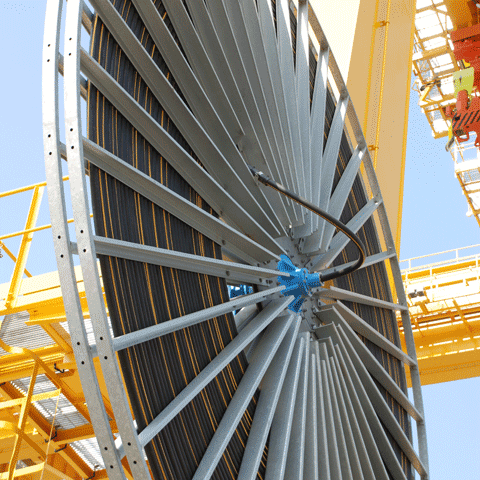

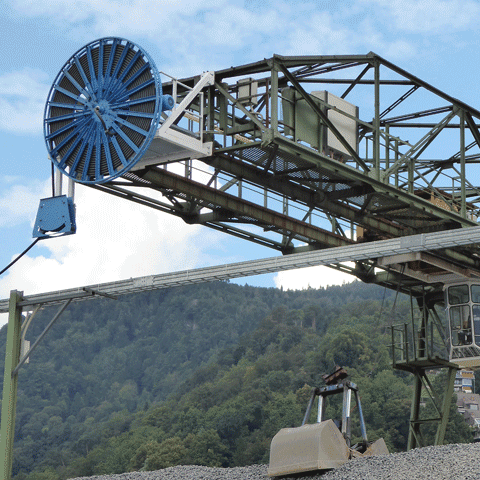

Wabtec offers motor-driven cable reels for power and data transfer. The reels are engineered in accordance with travel and power requirements of cranes and container-handling equipment and transfer electric, hydraulic pneumatic energy and a variety of data formats. Available in cylindrical and spiral types, Wabtec has the right reel to meet your challenges.

Spreader cable reels

We provide spreader cable reels for high working speeds. Our reels support the fastest operational cycles and most dynamic challenges while protecting the cable perfectly.

  • Low voltage
  • Optical fibers for data transfer
  • Cable lengths up to 80 m
  • Cable cross sections up to 56 x 2.5 mm²
  • Reel diameters up to 2.8 m
  • Travel speed up to 180 m/min
  • FCM drive technology (frequency controlled motor)
  • Special designs on request

Power cable reels

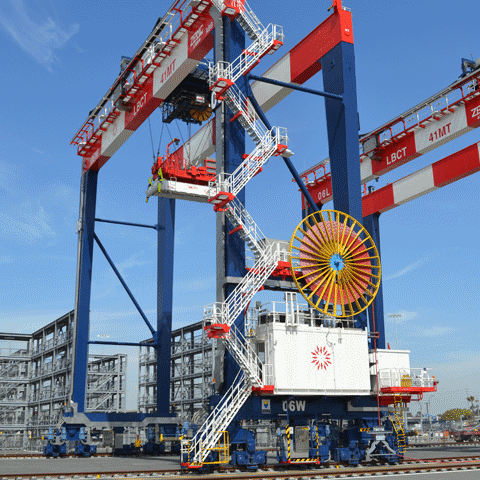

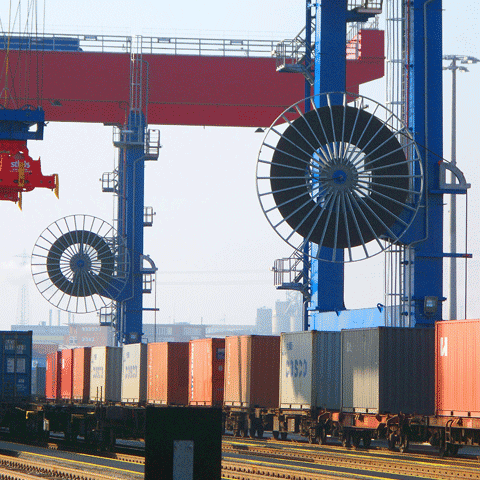

We provide power cable reels for Ship-to-Shore cranes (STS), RTGs, eRTGs and RMGs. Proven quality over the decades have made us the first choice of terminal operators world-wide.

  • Cable lengths up to 650 m
  • Cable cross sections from 25 mm² to 95 mm² for low / medium voltage
  • Reel diameters up to 8 m
  • Travel speed: up to 80 m/min
  • DTM (direct torque motor) & FCM (frequency controlled motor) drive technology
  • Special designs on request

Accessories

  • Cables (power/data)
  • Diverting Units
  • Tension relief
  • Roller bows or baskets
  • Terminal Boxes
  • Fiber-Optic Rotary Connector
