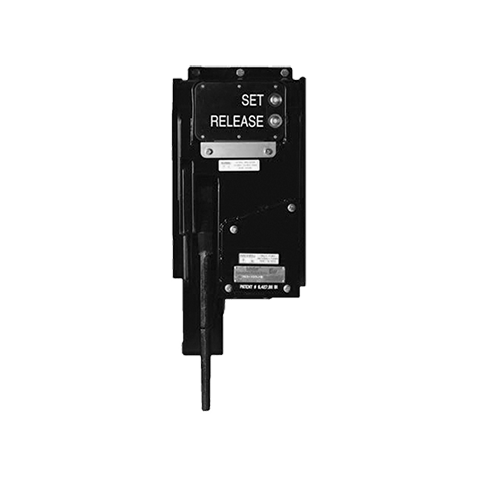

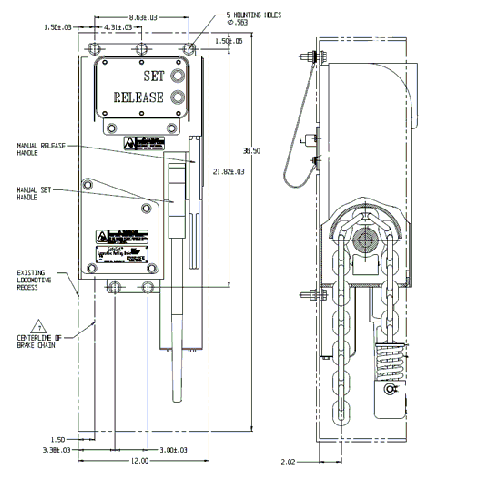

SafeSet 393 Series: Lever Style Locomotive Parking Brake

SafeSet 393 is an automated electric motor driven system that also incorporates the standard manual interface found on lever style hand brakes. The primary operator interface is a control panel incorporating two push buttons: SET & RELEASE. In the event electrical power is unavailable, the operator simply uses the manual levers. In the manual mode of operation, SafeSet only requires 60% or less operator-input force than existing mechanical hand brakes.

Technical Specifications:

  • Vertical Chain Force:  4,200 lbf nominal and 6,300 lbf nominal (force can be adjusted to meet customer requirements)
  • Chain Take-Up Range:  Unlimited
  • Operating Voltage Range:  48 to 85 VDC
  • Nominal Current:  20 Amps at 74 VDC
  • Max Inrush Current: 180 Amps for 75 ms
  • Duty Cycle:  11 to 15 seconds
  • Maximum Chain Speed:  2 inches / second
  • Temperature Range:  -40 deg. F. to 122 deg. F.
  • Transient Protection:  +/- 600 V FWHM 5 ms
  • Reverse Polarity Protection:  Yes
  • Weight:  210 lbs
  • Patent #:  6,427,811 B1

Related Products

Locomotive Parking Brake - SafeSet 419 Series
SafeSet 419 Series

Wheel style locomotive parking brake

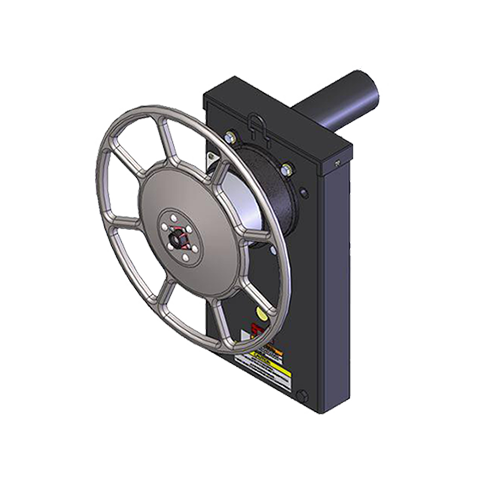

Locomotive Parking Brake - SafeSet 455 Series
