HATCH COVER SYSTEMS

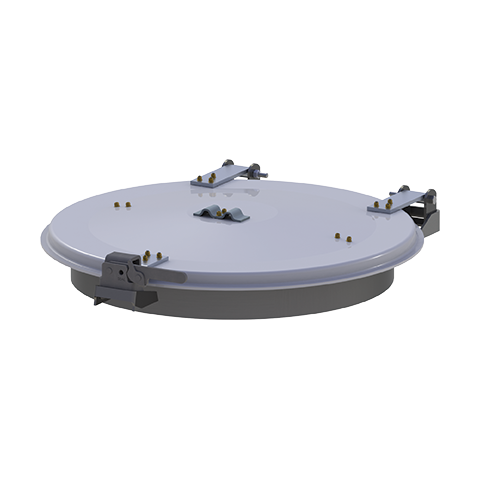

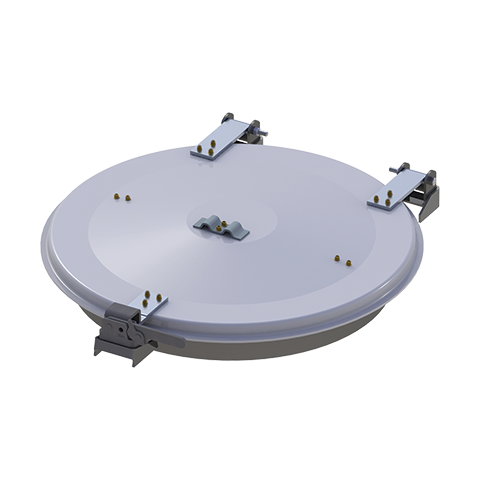

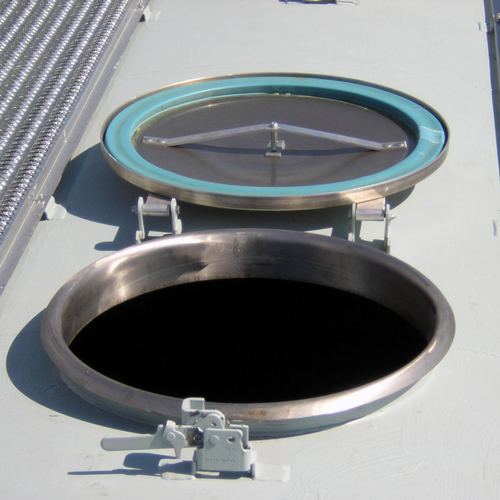

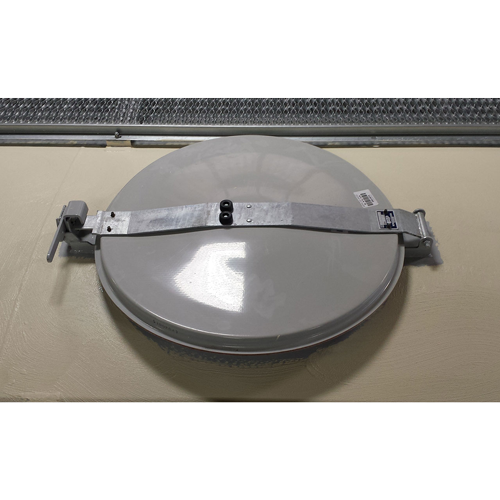

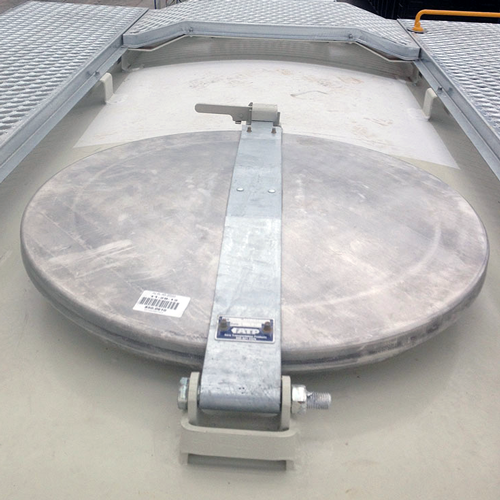

Wabtec's 30” round covers are available in steel, aluminum, and fiberglass with multiple hardware configurations. In addition to the traditional single hinge cover design, we offer a proprietary dual hinge design. The dual hinge cover has two fixed pivoting locations significantly reducing lateral movement, improving lock tab and gasket alignment, and reducing the overall back and forth play when operating the covers.

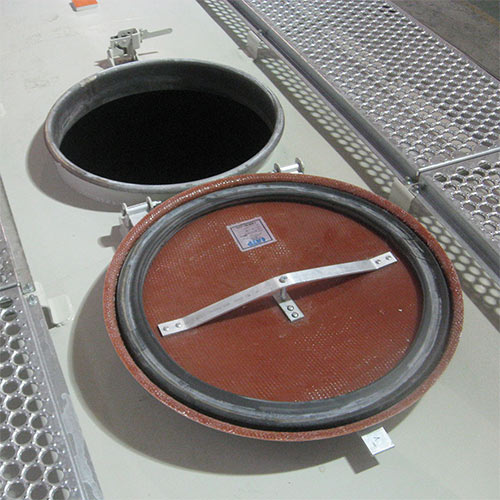

Fiberglass and aluminum dual hinge designs, are equipped with a camberator, located on the underside of the covers. This device allows the cover to be precision adjusted to match the curvature of a warped coaming ring, ensuring uniform gasket compression.

Common Commodities:

  • Sugar
  • Sand
  • Cement
  • Fly Ash

Call us for further details

  • 1-800-821-2376 (US & Canada)
  • +1-816-257-5450 (International)
30" Round Hatch Cover Systems

Features, Options & Specifications

  • Features
  • Additional Options
  • Technical Specifications

Features

Steel 30” Rounds:

  • Spun Steel Design (9ga, 0.1495”)
  • Durable Powder Coated Finish
  • Dual or Single Hinge Options Available
  • Hollow Channel Gasket with ¾” Compression
  • Heavy Durable Cover
  • Hinges and Lock Tabs are Welded on Prior to Powder Coating

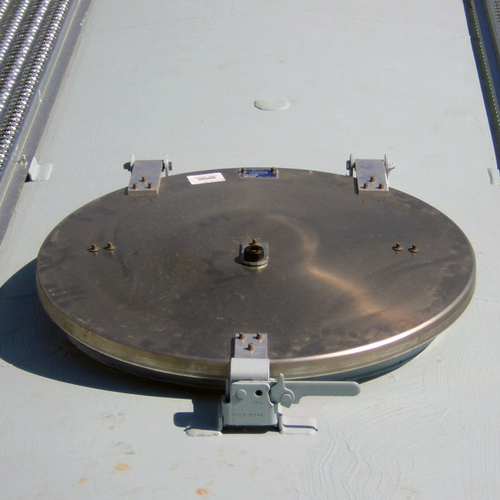

Aluminum 30” Rounds:

  • Spun Aluminum Design (0.190”)
  • Bare Aluminum Finish
  • Dual or Single Hinge Options Available
  • Dual Hinge Equipped with Camberator
  • Hollow Channel Gasket with ¾” Compression
  • Light Durable Cover
  • Multiple Hardware Configurations

Fiberglass 30” Rounds:

  • 6 Layer Fiberglass Laminate (Typical Trough Covers are 4 Layer)
  • Durable Grey Gel Coat Finish
  • Dual or Single Hinge Options Available
  • Dual Hinge Equipped with Camberator
  • Hollow Channel Gasket with ¾” Compression
  • Extremely Light and Durable Cover
  • Multiple Hardware Configurations

Additional Options

Gasket Options

  • Food Grade Gasket
  • Standard Black Gasket

Various Bumper Options to Suit Different Car Designs

  • Rubber Bumpers
  • Galvanized Bumpers
  • Aluminum Bumpers
  • Size and Locations

Hardware Options

  • Galvanized Hardware
  • Aluminum Hardware
  • Stainless Steel Hardware

Various Powder Coat Options and Colors for Steel Covers including but not limited to:

  • BRN – Brown (Federal Standards Color Code: 10076)
  • GRY – Medium Grey (Federal Standards Color Code: 26314)
  • TGY – Tan/Grey (Federal Standards Color Code: 26559)
  • TAN – Tan(Federal Standards Color Code: 13711)

Technical Specifications

STEEL 30" ROUND
MaterialSpun Steel
Material Thickness9ga, (0.1495”)
General Overall Cover Weight55 lbs.
ALUMINUM 30" ROUND
MaterialSpun Aluminum
Material Thickness0.190"
General Overall Cover Weight29 lbs.
FIBERGLASS 30" ROUND
MaterialFiberglass
Material Thickness6 Layer Laminate (Typically 1/4”)
General Overall Cover Weight23 lbs.
