HATCH COVER SYSTEMS

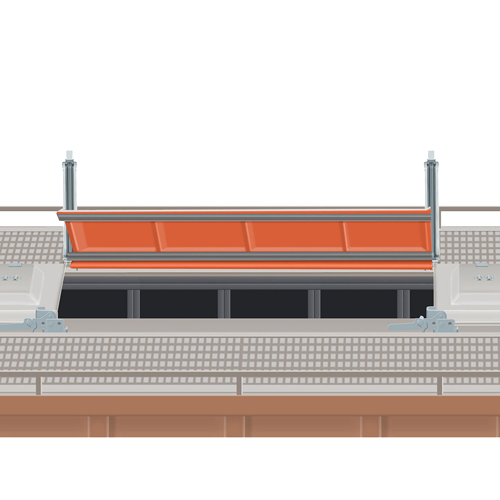

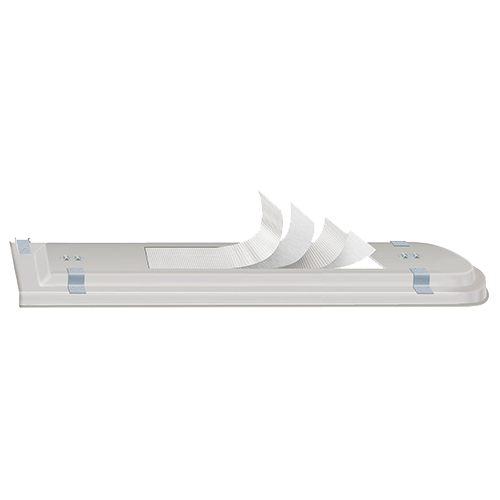

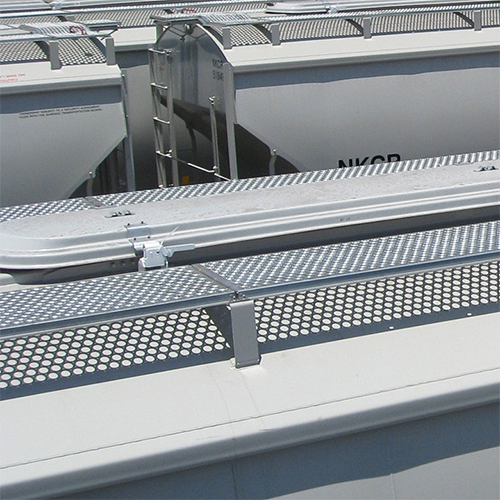

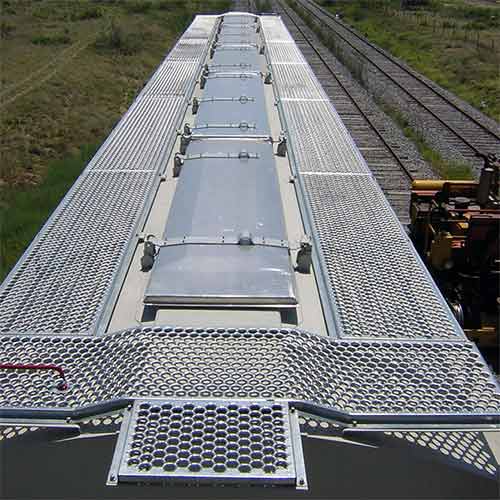

The traditional covering system since the late 1960’s typically utilizes four to six rectangular shaped trough covers, with three to five batten bars. These covers generally range from 7 to 13 foot in length and the outer most covers on the car have either square or round ends depending on the trough style.

Our conventional covers are offered in fiberglass and aluminum, utilizing stainless steel batten bars, and a hollow chamber trough gasket design. Along with material options, conventional covers are offered in multiple sizes with numerous hinge positions and locations. This flexibility creates a multitude of cover combinations available to suit your exact requirements.

Common Commodities:

  • Grain
  • Soy Bean Meal
  • Malt/Barley
  • Salt
  • Potash
  • Corn Gluten Meal
  • Lime
  • Fertilizer
  • Soda Ash
  • Bentonite/Clay
  • Dried Distillers Grain (DDG)

Call us for further details

  • 1-800-821-2376 (US & Canada)
  • +1-816-257-5450 (International)
Conventional Cover Systems

Features, Options & Specifications

  • Features
  • Additional Options
  • Technical Specifications
  • Operating Instructions

Features

Gasket System

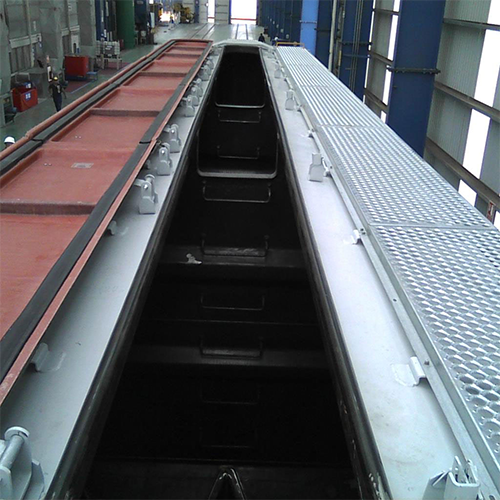

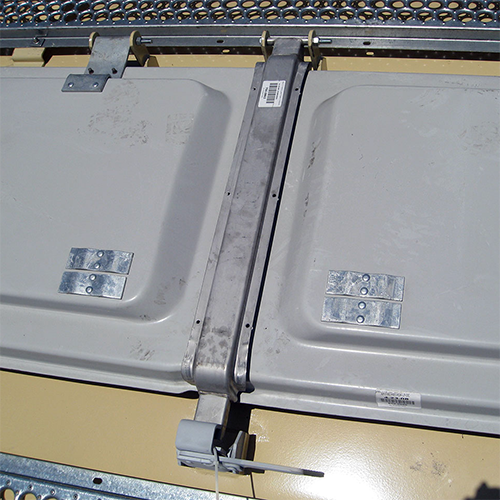

The hollow chamber trough gasket design typically provides up to 3/4 of an inch compression between the cover and coaming of the car. The internal gasket of the batten bar overlaps the end flanges of two adjacent covers, providing a good weather resistant seal.

Fiberglass Conventional Covers:

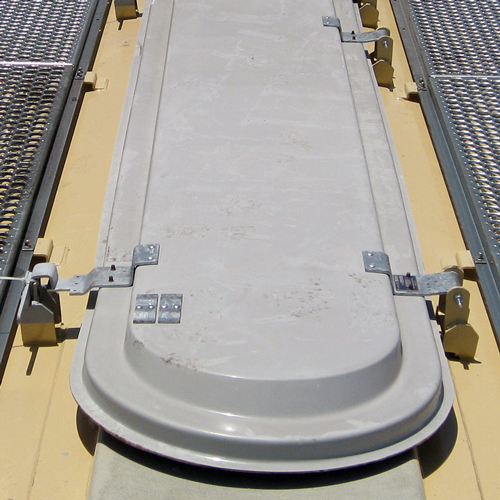

  • 4 Layer Fiberglass Laminate (Typically 5/32”)
  • Durable Grey Gel Coat Finish
  • Depth of Pan and Molded in Ribs add Superior Cover Strength
  • Crown Shape Sheds Water
  • Light Durable Cover
  • AAR Approved Designs

Aluminum Conventional Covers:

  • 5052_H34 Aluminum (0.125”)
  • Strong 6061_T4 Extruded End Channels
  • Bare Aluminum Finish
  • Fully Welded Construction
  • AAR Approved Designs

Additional Options

  • Multiple Trough Widths Available
    • 20” & 24” = Fiberglass
    • 20”, 24”, & 30” = Aluminum
  • Numerous Cover Lengths Available
  • Numerous Hinge Positions Available
  • Gasket Options
    • Food Grade Gasket
    • Standard Black Gasket
  • Various Bumper Options to Suit Different Car Designs
    • Galvanized Coated Bumpers
    • Various Size and Locations
  • Multiple Hardware Configurations
    • Galvanized Steel Hardware
    • Stainless Steel Hardware

Technical Specifications

FIBERGLASS CONVENTIONAL COVERS
Material4 Layer Fiberglass Laminate
Material Thickness5/32” (0.156”)
General 13" Overall Cover Weight84 lbs.
ALUMINUM CONVENTIONAL COVERS
Material5052_H34 Aluminum
Material Thickness1/8” (0.125”)
General 13" Overall Cover Weight103 lbs.

Operating Instructions

With a conventional cover system, any one cover can be opened at anytime if the corresponding locks and batten bars are unlocked. There is no sequence required when opening this cover design, but it is suggested they be closed in sequence. For safety reasons we do not recommend walking inside an open cover, so closing in sequence can prevent this from occurring.

Opening:

  • Open the two locks associated with the corresponding cover to be opened.
  • Once locks are opened, the batten bars can be swung out of the way.
  • The desired trough cover can be opened.

Closing:

  • Wabtec recommends that the covers are closed in a sequential order to prevent walking inside the covers.
  • While walking on the running boards, continue down the length of the car closing the covers and/or batten bars.
  • Walk across the running boards to the lock side of the car. Walk the length of the car, locking each lock to secure the batten bars and covers in place.
