Reduce port emissions with our High Voltage Shore Power system

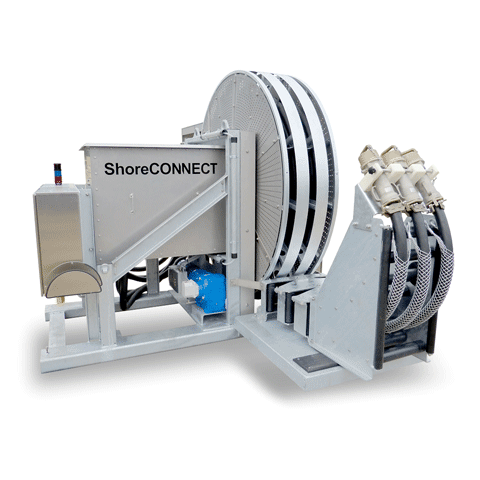

Wabtec is the market-leading producer of shore-to-ship cable management systems (CMS) for onshore power supply solutions (OPS). ShoreCONNECT is the interface between the harbor’s power-supply architecture, such as a local substation, and any kind of vessel, including cruise, container, OSV, PSV, ferries, RoPax, RoRo, car and bulk carriers. It is also the interface between land-side junction box and ship-side socket. According to local requirements, our CMS solutions can relocate along the quay and is available as either a mobile or stationary applications. Wabtec’s solutions compensate tidal range and are safely protected against flooding.

For special purposes, we offer reliable high and low voltage solutions (e. g. FerryCHARGER) for automatic connection in just a few seconds. 

Variants for high and low voltage

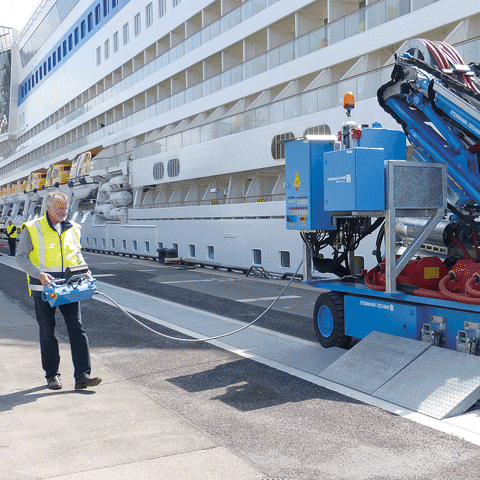

  • Vehicle solutions with underfloor cable chain
  • Vehicle with cable reel on top
  • Diverse cable dispensers
  • Cable reels for crane or forklift relocation on shore or on top of vessel
  • Cable reels for container vessels on-quay or underfloor-cable channel

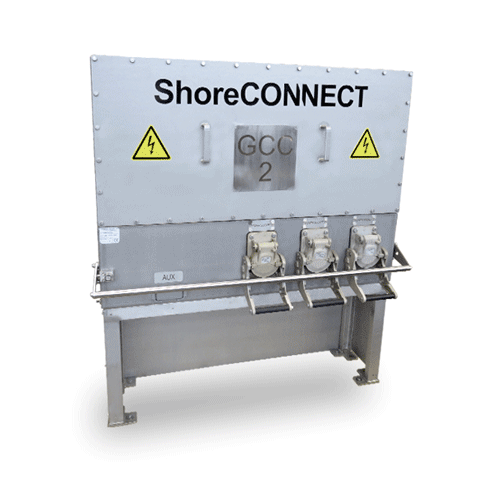

  • Movable on-shore junction boxes
  • Fully wired junction boxes (classic or daisy chain)
  •     Engineered in Germany
  •     Made in Germany
  •     Low voltage or high voltage
  •     Up to 20 MVA at 11 kV or 6.6 kV
  •     Variable frequencies 50 / 60 Hz
  •     Fail-safe disconnection system
  •     Ergonomic plug carrier
  •     Tidal range compensation

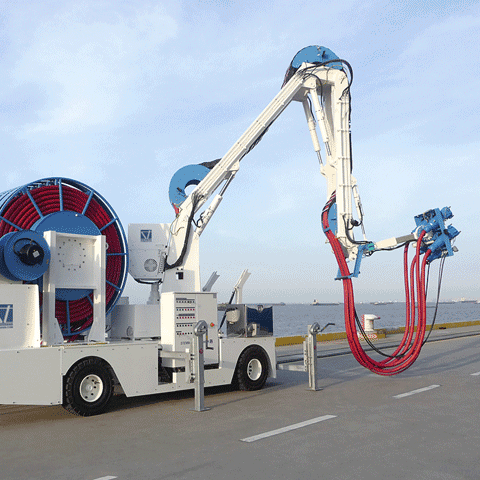

  •     Articulated arm
  •     State of the art vehicle operation by one person
  •     Meets ICE / ISO / IEEE 80005-1 and -3
